Sensitive-data handling

Editions: OSS, Cloud, Enterprise. Detection and the policy configuration ship in OSS. Audit views, chain exports and other extension-backed stores are available when those services are installed.

Use Policies → Sensitive data to select detectors, configure actions and reference-only tool scopes, and test synthetic text before applying the policy. The same configuration can be managed as policy YAML. This guide explains what is detected, what leaves the process, and what each store retains.

Detection and its limits

Detection is best effort, not a compliance guarantee. A match is evidence that a configured pattern was found, not proof of a person's identity or that the value is real. A missing match does not prove that a payload is safe.

Type	Detects	Known limits
email	Mailbox-shaped addresses	Unusual spellings and obfuscation can evade it.
phone	E.164 and supported US/European national formats	Country context and number-like identifiers can cause false positives.
credit_card	13–19 digits passing Luhn	A checksum is not proof of a real account; unsupported or obfuscated forms can be missed.
iban	IBANs passing mod-97	Does not identify the account owner or validate that the account exists.
ip_address	Parseable IPv4/IPv6 addresses	A detected address is not necessarily personal data.
date_of_birth	A date near a birth keyword, such as DOB or Geburtsdatum	Unlabelled dates and unfamiliar languages may be missed.
national_id	US SSN shape, DE tax-ID check, UK NINO, FR NIR check, keyword-anchored NL BSN check	Only supported locales/formats; US shape matching has no checksum. Narrow locales when appropriate.
medical_record_number	Identifier following MRN, patient-ID or supported record keywords	Unlabelled identifiers are missed; configure medical_record_number_pattern for your format.
person_name	Honorific- or label-anchored names	Low recall by design: arbitrary names in prose are not reliably detected.

Custom patterns and whole-word keyword lists belong in sensitive_data.detectors. Pattern and timeout limits are documented in Model content policies. Tool scans examine string and numeric leaves, and result text/structured content. Value-level structured redaction rewrites string values only; object keys and non-string values remain. Keep identifiers as strings and test the exact representation your tools use. Redaction is not an OCR or binary-file scrubber.

Actions and upstream behavior

Configuration	Effect
action: notify (detect only)	Records a notice when the notice/audit services are available and continues. It does not redact or block.
action: redact	Replaces detected spans in stored string values with [REDACTED:<type>]. Default: original upstream, redacted at rest.
action: deny (block)	Refuses tool arguments before forwarding; a result rule replaces the result after the tool has already run. Model-request rules block before the provider call.
action: require_approval	Pauses arguments/results or model content for a configured human workflow/account default; fails closed without a usable workflow.

redact_upstream: true additionally rewrites arguments sent to a tool, a tool result returned to the agent, or a model request sent to the provider. It can break a tool that needs the original identifier. It is not supported for model responses; those can be redacted at rest. Blocking a result cannot undo effects of the tool that already ran.

Tool rules use scope.tools (client-visible names), scope.servers (MCP server names; builtins use preloop-mcp) and scope.agents (managed agent IDs). Model targets honor agent scope, not tool/server scopes. An empty scope covers every call for its targets. Detectors run only when a rule is in scope.

Each rule has detector_timeout_ms (default 500) and on_detector_timeout (default deny). A timeout normally fails closed; notify-only rules are skipped. Setting the timeout mode to allow permits that rule to be skipped, so review it deliberately.

What is stored

The following applies to new records covered by the configured scope. Installing a rule does not rewrite historical rows or erase external copies. Ordinary capture settings and retention still determine whether a store has a record at all.

Store/surface	Redaction mode	Reference-only tool mode
Tool-call audit and policy-decision rows	Scoped matches are redacted before storage/sealing; decision, types and counts remain.	Arguments/results become reference records. Tool/server/principal, rule, decision, kept values, fingerprints, sizes and timing remain.
Approval requests	Stored string matches are redacted.	Approver sees the reference by default; the explicit temporary-original mode below is the exception.
Runtime activity summaries and tool-call search index	Scoped stored tool content is redacted before summaries/indexing.	Indexed tool content is the reference, not the omitted arguments/result. Kept values can still be searchable.
Model usage/request/response capture	Model-target redact rules apply to captured content. Tokens, duration, status and cost remain.	Tool reference scopes do not remove independent model text. Configure model-target rules separately.
Notification delivery	Notices describe matching rules/types, without raw detected previews.	Original approval arguments do not enter emails, webhooks or push payloads.
OpenTelemetry	Raw prompts, completions and tool arguments are never span attributes. IDs, model/provider, status, token counts, duration and cost remain.	The same metadata-only span contract applies.
Agent files, evidence archives, native checkpoints and upstream/provider logs	Tool/model record redaction is not a general file or external-log scrubber.	A tool reference rule does not erase copies an agent or upstream stored independently. Apply separate artifact/retention controls.

Original values still exist in memory for execution and, by default, go to the upstream tool/provider. Reference-only means the scoped tool record omits its payload, not that no system can ever retain it. Timing, byte sizes, key names, identity, token counts and cost can still reveal activity. Retention/legal hold keeps or expires the remaining records; it cannot recover omitted payloads.

Reference-only records and verification

sensitive_data.reference_only must name a tool, server or agent; an empty scope is refused. keep_fields names the minimum metadata to retain:

• $.consent_id reads an argument; $result.consent_id reads a structured result or its first JSON text block.
• Dotted fields, [n] and [*] are supported; arbitrary JSONPath filters are not. A missing path keeps nothing.
• Kept values go through scoped redact rules too. Keeping a whole object can keep more data than intended; prefer individual IDs.

Records include args_hmac, result_hmac and salt_id. Despite the legacy field names, new fingerprints use scrypt with an encrypted per-account secret salt over canonical payload data. Older HMAC-SHA256 fingerprints remain verifiable. Salt rotation retains older salts so existing records still verify; exports include salt IDs, never the secret salts.

POST /api/v1/policies/sensitive-data/hash-check accepts payload, args_hmac and optional salt_id; it requires manage_policies, checks only the caller's account salts, and does not store/log the candidate. When checking a result, pass the record's result_hmac value in the args_hmac request field. The request has no result_hmac field. Equality verification does not reconstruct the omitted payload.

For example, replace the synthetic fingerprint below with the stored result_hmac value (and add the record's salt_id if available):

{
  "payload": {"consent_id": "consent-example"},
  "args_hmac": "0000000000000000000000000000000000000000000000000000000000000000"
}

With approver_view: redacted, approvers see only the reference. With original_until_decided, the original arguments stay encrypted on the pending approval, are accessible through the authorized console original-args endpoint while pending, and are deleted in the decision transaction. They are not sent through notification channels. Reference-only asynchronous replay cannot reconstruct omitted arguments after the original is removed; an in-process wait retains the original in memory.

Redaction/reference conversion happens before an audit row is sealed into its hash chain. Do not edit sealed records. The audit/evidence services expose signed chain checkpoints and period exports. Verify independently:

preloop audit verify --start-seq 1000 --end-seq 2000 --json
preloop evidence verify export.tar.gz --public-key ./account-key.pub

The first command recomputes the chain locally from the server's segment; the second verifies a downloaded archive offline. Neither recovers omitted payloads or proves detector completeness. See Evidence storage and signed records for checkpoint retention, key trust and offline verification.

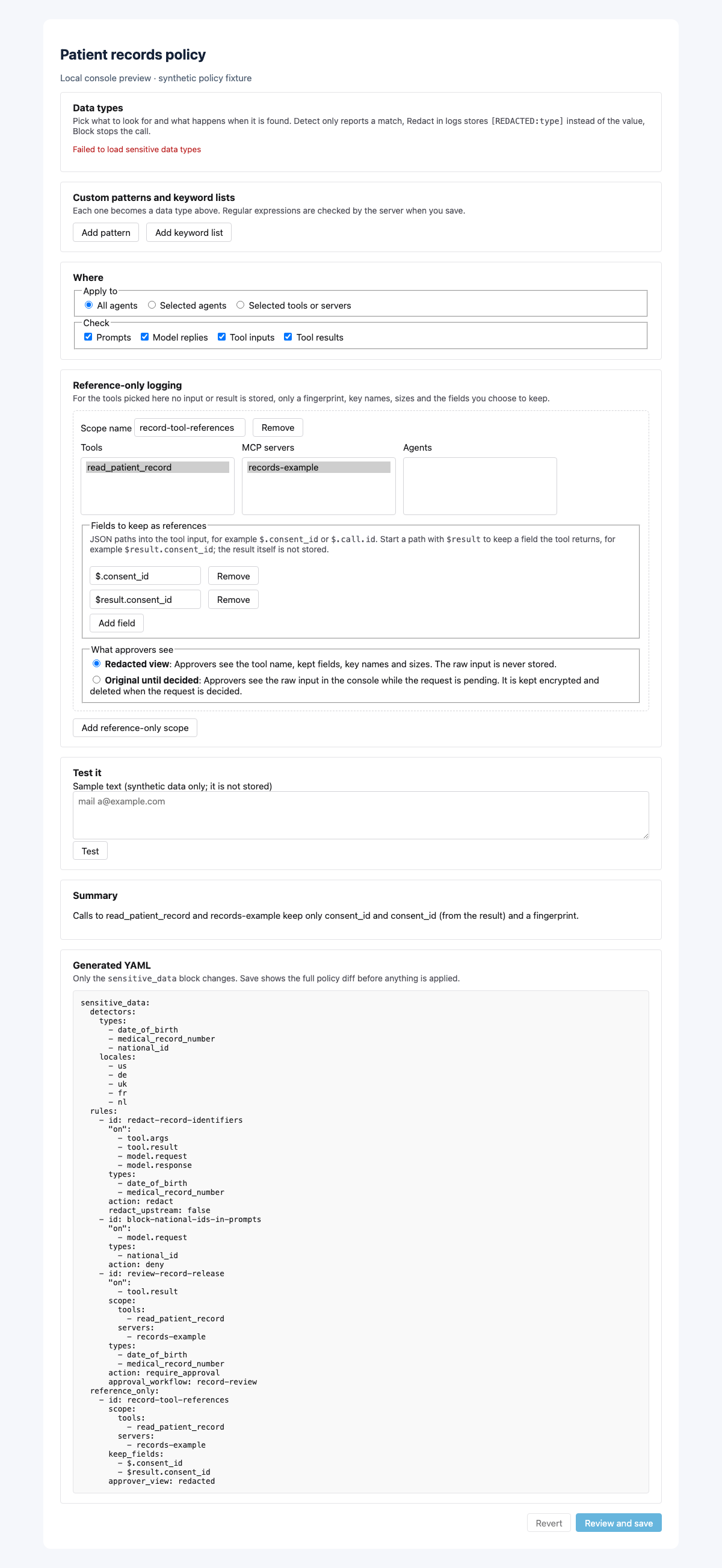

Example 1: a synthetic patient-data app

The server records-example exposes read_patient_record. It reads only after your application verifies consent. The policy keeps argument/result consent_id, omits other record payloads from tool stores, redacts labelled birth dates/MRNs in other scoped logs, and blocks national IDs in model prompts. Record results containing those identifiers require record-review approval. This policy is not a replacement for application-level consent checks.

Use synthetic text such as DOB: 1990-02-03; MRN: EX-1042 in Test it. Use a synthetic consent such as consent-example-001 as a kept field. This example contains no real patient record or national identifier.

Download the complete policy.

version: "1.0"
metadata:
  name: Synthetic patient-record handling
  description: Reference-only record tools and redacted storage copies
approval_workflows:
  - name: record-review
    timeout_seconds: 300
sensitive_data:
  detectors:
    types: [date_of_birth, medical_record_number, national_id]
    locales: [us, de, uk, fr, nl]
  rules:
    - id: redact-record-identifiers
      "on": [tool.args, tool.result, model.request, model.response]
      types: [date_of_birth, medical_record_number]
      action: redact
      redact_upstream: false
    - id: block-national-ids-in-prompts
      "on": [model.request]
      types: [national_id]
      action: deny
    - id: review-record-release
      "on": [tool.result]
      scope:
        tools: [read_patient_record]
        servers: [records-example]
      types: [date_of_birth, medical_record_number]
      action: require_approval
      approval_workflow: record-review
  reference_only:
    - id: record-tool-references
      scope:
        tools: [read_patient_record]
        servers: [records-example]
      keep_fields: ["$.consent_id", "$result.consent_id"]
      approver_view: redacted

The redaction rule keeps the original upstream (redact_upstream: false). If sending even a birth date or MRN upstream is unacceptable, either block it before forwarding or enable upstream redaction and test the tool's behavior. Reference-only result/argument retention still omits everything except the explicit kept fields, regardless of redaction's string-value limitations.

Example 2: synthetic payment data

The server payments-example exposes submit_payment. Card-number matches in tool inputs and model prompts block before forwarding; IBAN matches are redacted in stored content. Only payment_id survives in the scoped payment tool's reference record. Unrelated model text remains governed by the separate model rules.

Use the public test card 4111 1111 1111 1111 and the synthetic/example IBAN DE89 3704 0044 0532 0130 00 only in a local test. Checksums are format tests, not evidence of a usable account. Use payment-example-001 as the kept ID.

Download the complete policy.

version: "1.0"
metadata:
  name: Synthetic payment-data handling
  description: Block card numbers, redact IBANs and retain payment references
sensitive_data:
  detectors:
    types: [credit_card, iban]
  rules:
    - id: block-card-inputs
      "on": [tool.args, model.request]
      types: [credit_card]
      action: deny
    - id: redact-bank-accounts
      "on": [tool.args, tool.result, model.request, model.response]
      types: [iban]
      action: redact
      redact_upstream: false
  reference_only:
    - id: payment-tool-references
      scope:
        tools: [submit_payment]
        servers: [payments-example]
      keep_fields: ["$.payment_id", "$result.payment_id"]
      approver_view: redacted

Apply and inspect

1. Open Policies → Sensitive data, select your types/actions/scopes and review Generated YAML. The screenshots use local synthetic fixtures.
2. Use Test it with synthetic data and verify found types and stored preview.
3. Validate/diff before applying the complete policy. Tool/server names must match your configured account; bind real approval workflows where used.
4. Inspect new tool/model/approval records and the kept metadata. Re-test field formats, locale choices and downstream compatibility when a tool changes.

For model-only conditions and detector bindings, continue with Model content policies. For approval execution modes, see Async approvals. For exported metadata, see OTLP privacy.
